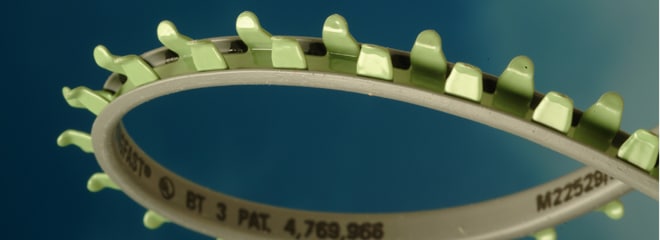

Spring-Fast Military: NASM22529/2 Series
Cage Code: 0HES0
The MIL SPEC Series per NASM22529/2 offers a versatile steel substrate encapsulated with lubricious fusion bonded epoxy
for superior abrasion and chemical resistance. It has enhanced grip strength and is 2 axis conformable.
It adds a sacrificial polymer cushion as a softer and sacrificial wire interface for even greater wire protection.
NASM22529/2 Series is the NASM22529/1 plus a sacrificial polymer cushion.
Key Benefits
- U.S. Defense Dept. FAA Acceptable: NASM22529/2 and National Stock Number: Federal Supply Code 5325.
- Superior performance: encapsulated stainless steel core: outperforms plastic grommets.
- Snap on installation lowers costs 49% vs. grommets with glue. Watch the 4 min. video below.
- Improves efficiency 9.5x – due to fewer steps in workflow.
Grommet Differentiation Table (GDT)
Grommet Series | Castle Geometry | Flexibility | Polymer Coating | Extra Cushion | 100% TPE Encapsulation | High Heat | Mil Spec | Application Method | Notes |
---|---|---|---|---|---|---|---|---|---|
NASM22529/2 | Alternating | 2 axis | Yes | Yes | No | 185°F/85°C | Yes | Snap on/No adhesive | FAA Acceptable No cure time delay |
FOR REFERENCE | |||||||||
MS21266 Nylon | Opposing | 2 axis | NA | Yes | NA | 257°F/125°C | Yes | Adhesive Required | 8-24hr cure time delay |
MS21266 Teflon | Opposing | 2 axis | NA | Yes | NA | 527°F/275°C | Yes | Adhesive Required | 8-24hr cure time delay |
Applications
- Military use and in service worldwide on airframes, wings, tails, bulkheads, webs, lightening holes, APU’s, avionics,
radars across tactical vehicles, helicopters, jets, military transports and miscellaneous tactical equipment - Aerospace use on business jets and general aviation aircraft: IFE, seating, galleys, toilets, bulkheads, avionics, etc.
- Straight edges, knockouts, access panels and penetrations
- Small radii inside or outside corners
Features
The old nylon grommet with glue is old, inefficient and costly. DTi has a better way.
- Epoxy encapsulated stainless steel substrate.
- Snaps on fast with finger pressure
- Installs continuously with single axis conformity
- Self locking with strong retention – no adhesives
- Simpler install: no adhesive, fixturing, curing, clean up or OSHA concerns,
reduces installed costs - Maintenance is far easier due to its ease of application and removal
- Customization available (lengths, colors and print)
Key Specifications
- Resistant to hydrocarbons, immersion, salt spray, shock and vibration.
- Operating Temperature Heat continuous to -40°F to 185°F (-40°C to 85°C)
- Flammability Rating per Mil Std: FAR 25.601, FAR 25.853
- High Shock and Vibration Resistance per MIL-STD-1344 to rms G 41.7
- 8 sizes to fit edge thicknesses: 0.025” to 0.26” (0.6 mm to 6.6 mm)
- Available in custom cut lengths & factory pre-cut reels of 25 ft. (7.6 m), 100 ft. (30.5 m) or 500 ft. (152 m)
- Tools available: Installation roller, full by-pass shears, castle removal, measuring scale,
- go / no-go sizing gauge, cutter cart
Qualifications
Spring-Fast® Product Configurations M22529/1 M22529/2

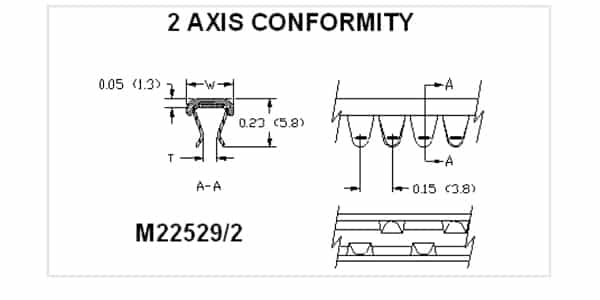

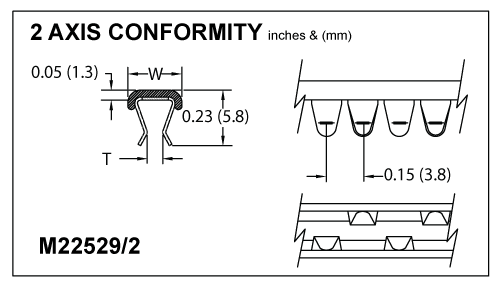

Axis Conformity 2 2
Vicat Softening Point per ASTM D01525 Rate B N/A Cushion: Thermoplastic Elastomer
Per ASTM D1525 Rate B, ISO306
230°F (110°C)
Operating Temperature Range 285°F (140°C) 185°F (85°C)
-40°F (-40°)
Dielectric Strength:
Volts 60 Hz per NASM22529, Section 3.2.11000 1500
Substrate Type 304 Stainless Steel
Taber Abrasion Resistance Substrate Finish: Epoxy
Per ASTM D 1044
1 kg load, C17 Wheel
8 mg loss 5000 cyclesTPE Cushion: Per D1044
1 kg load, C17 Wheel
25 mg loss 1000 cycles
Finish Coating: Thermosetting Epoxy, Color: Lime Green per FED-STD 595, Color Number 14533
Salt Spray Hours 500
ASTM B117, MIL-STD-202, Method 301
Immersion Per NASM22529 and Skydrol Compatible
Random Shock & Vibration MIL-STD-1344, Method 2005.1 Test Condition VI, Letter J
Duration 8 hours longitudinal and 8 hours perpendicular, rms G 41.7
Flammability UL94V-0 - File No. E113553 NZMT2
MIL-STD-202F, Method 111A
FAR 25.853
Telcordia GR63 Core
Fabrication Options Reels: 25' (7.6m) & 100' (30.5m)
10 pack: ten 12.75" (32.4cm) strips
Custom cut lengths (see table below)
Federal Supply Class 5325 National Stock Numbers
and
NATO Part NumbersClick here for DTi's Cross Reference Chart for National Stock Numbers & NATO Part Numbers
Custom Cut Lengths
Nominal Hole Diameter | Cut Lengths | Number of Castles | ||
---|---|---|---|---|
Inches | mm | Inches | mm | |
2 | 50.8 | 6 | 152.4 | 40 |
2.25 | 57.15 | 6.9 | 175.26 | 46 |
2.5 | 63.5 | 7.65 | 194.31 | 51 |
2.75 | 69.85 | 8.4 | 213.36 | 56 |
3 | 76.2 | 9.15 | 232.41 | 61 |
3.25 | 82.55 | 10.05 | 255.27 | 67 |
3.5 | 88.9 | 10.8 | 274.32 | 72 |
3.75 | 95.25 | 11.55 | 293.37 | 77 |
4 | 101.6 | 12.3 | 312.42 | 82 |
4.25 | 107.95 | 13.2 | 335.28 | 88 |
4.5 | 114.3 | 13.95 | 354.33 | 93 |
4.75 | 120.65 | 14.7 | 373.38 | 98 |
5 | 127 | 15.45 | 392.43 | 103 |
5.25 | 133.35 | 16.35 | 415.29 | 109 |
5.5 | 139.7 | 17.1 | 434.34 | 114 |
5.75 | 146.05 | 17.85 | 453.39 | 119 |
6 | 152.4 | 18.6 | 472.44 | 124 |
