Spring-Fast Grommet Edging: High Heat Series
The High Heat Series consists of two un-encapsulated raw stainless steel metal only products.
They provide long term reliability for hostile high temperature environments.
They are low profile, multi axis conformable providing excellent grip strength and allow a low profile edge protection treatment.
The High Heat series are the AP and FM Series with no encapsulation. The FM variant provides a zero clearance flush mount capability.
Key Benefits
- Superior performance: 304 stainless steel goes where plastic and other polymeric grommets cannot be used.
- Fast and easy snap on installation, maintaining low installed cost benefits.
- At least 49% install cost savings vs. Teflon Grommets and glue.
- Improves efficiency 9.5x – due to fewer steps in workflow.
- Superior inherent grip strength from the stainless steel design.

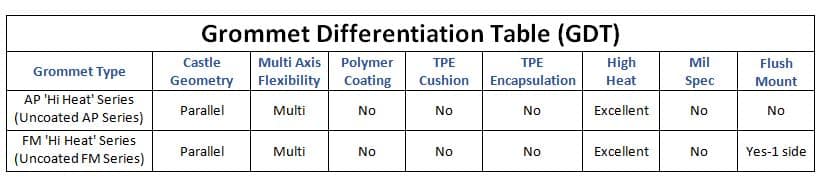

Grommet Differentiation Table (GDT)
| Grommet Series | Castle Geometry | Flexibility | Polymer Coating | Extra Cushion | 100% TPE Encapsulation | High Heat | Mil Spec | Application Method | Notes |
|---|---|---|---|---|---|---|---|---|---|
| High Heat (AP) | Opposing | Multi axis | Uncoated | No | No | 800°F/427°C | No | Snap on/No adhesive | No cure time delay |
| High Heat (FM) | Opposing | Multi axis | Uncoated | No | No | 800°F/427°C | No | Snap on/No adhesive | 1 side flush No cure time delay |
| FOR REFERENCE | |||||||||
| MS21266 Teflon | Opposing | 2 axis | NA | Yes | NA | 527°F/275°C | Yes | Adhesive Required | 8-24hr cure time delay |
Applications

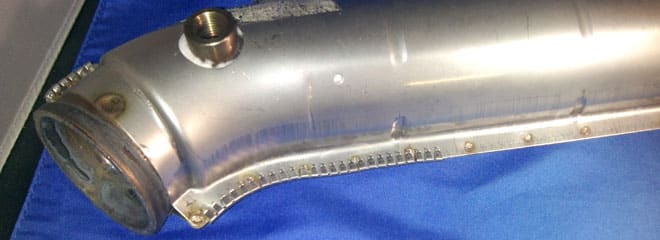

- Used in high heat situations: engine compartments, heat shields, exhaust systems, boilers, ovens, down hole drilling, furnaces, fastener to retain metal fabrics
- Straight edges
- Multi axis flexibility for flanged holes and small radii inside or outside corners
Features
- 304 stainless steel tooled to minimize burrs in extreme conditions
- Snaps on fast with finger pressure
- Installs continuously with multi axis conformity
- Self locking with strong retention
- Easy maintenance due to its ease of application and removal

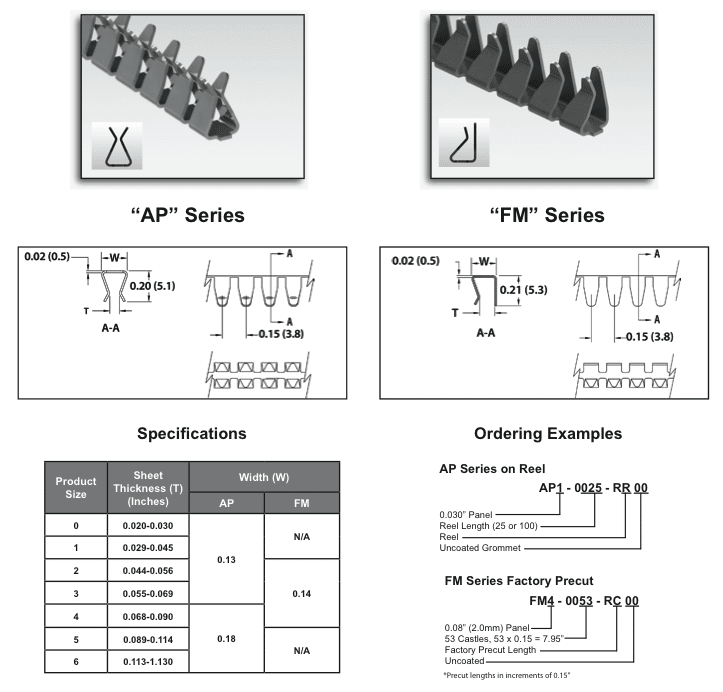

Key Specifications
- Resistant to hydrocarbons, immersion, salt spray, shock and vibration
- Operating Temperature Heat continuous to -40°F to 800°F (-40°C to 427°C)
- High Shock and Vibration Resistance to rms G 41.7
- AP-High heat: Fits edge thicknesses: 0.020” to 0.130” (0.5 mm to 3.3 mm)
- FM-High heat: Fits edge thicknesses: 0.044” to 0.090” (1.1 mm to 2.3 mm)
- Available in custom cut lengths & factory pre-cut reels of 25 ft. (7.6 m), 100 ft. (30.5 m) or 500 ft. (152 m)
- Tools available: Installation roller, full by-pass shears, castle removal, measuring scale,
- go-no go sizing gauge, cutter cart
